CANUTO

CANutETH gateway links CAN bus, Ethernet and GPRS networks and automates communication events responding to multiple bus trigger conditions. A PC graphical user interface allows configuring communication event handling for a stand alone functionality in controller mode. The internal router, port  forwarding and VPN tunneling provide secure integration to local area networks (LAN).

Features

10/100 Base-T Ethernet

CAN bus 2.0A/B interface (selectable high speed or low speed transceiver)

Quad band: GSM 850/900/1800/1900Mhz GPRS/EGPRS

SMS access for configuration and instruction modes

Internal SIM card

Optional GPS positioning

Up to 3 different RS232 ports

Embedded web server based configuration utility

Up to 200MB of nonvolatile storage resources

Optional battery Lithium ion battery pack

Scripting, event triggering/automation

Internal temperature Sensor.

 Gateway transparent mode or Stand alone controller mode

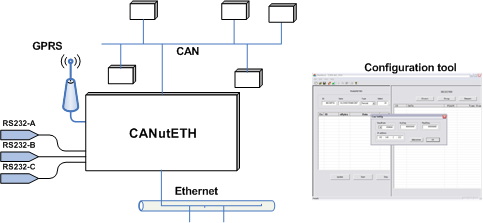

CANutETH Application

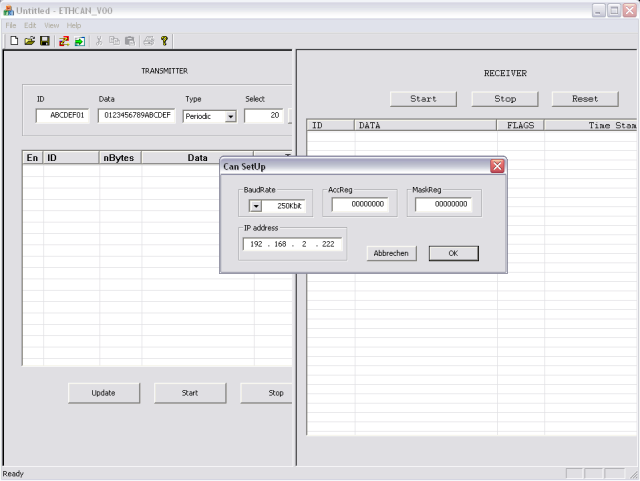

CANutETH Software ETHCAN_V00
