Solid State HDD

MLC nand flash FPGA-based 320 GB hard disk,  daisy-chain pluggable.

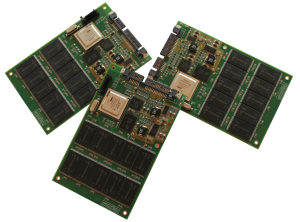

Designed to fit applications where non-volatile memory unit needs different behaviour than standard mass storage devices. Standard 2.5″ form factor and 100% progammable using FPGA/HDL technology. With a single SATA link of up to 3Gbps, unlimited HDD’s can be concatenated in daisy chain mode achieving extraordinary storage capabilities in multiples of 320GB.

 Features

FPGA based HDD controller, Xilinx Virtex5 device.

Physical transfer rates of up 3Gbps.

JTAG programming interface.

Platform-Flash to hold FPGA image.

Daisy-Chain pluggable.

Writing speeds of up to 140MB/s per device.

Application example with integrated file system.

Programmable wear-leveling and ECC algorithms.

Hardware : FPGA + 20x nand flash chips + DDR-RAM + Clock circuitry + SATA connectors x2 + Platform Flash

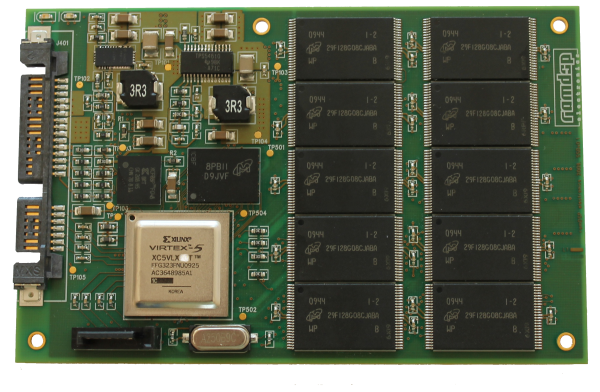

Top

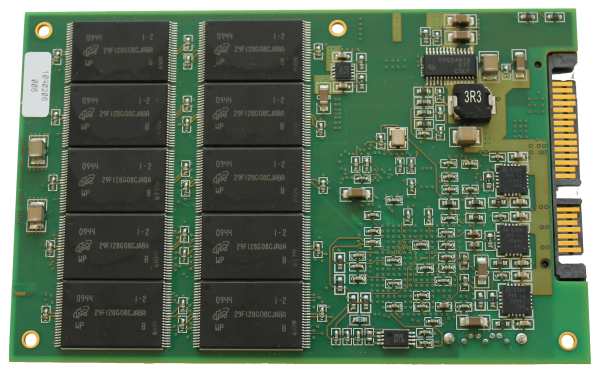

Bottom
